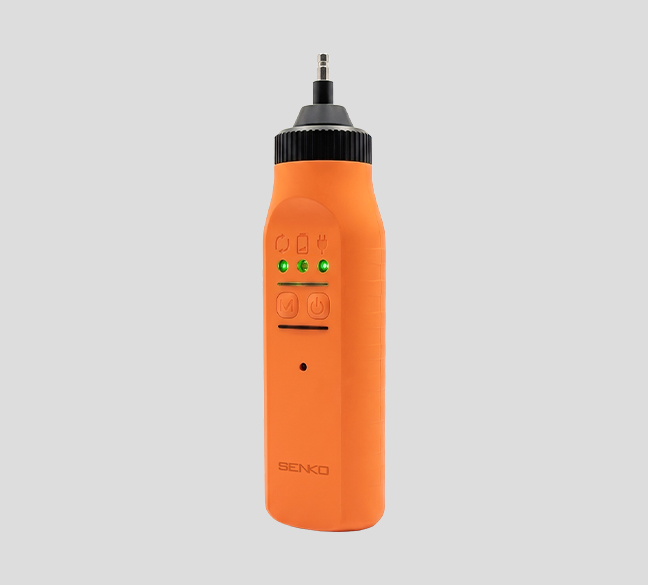

SP-Pump Ex

Explosion-Proof Sampling Pump

DESCRIPTION

SP-Pump Ex is an external sampling pump designed for use with SENKO gas detectors. By drawing gas samples through a probe or sampling line and delivering them to a connected gas detector, it enables remote gas leak detection in hard-to-reach areas such as manholes and pipelines. The pump features three selectable flow levels, automatic blockage detection, and LED status indicators for convenient and reliable operation. With a rechargeable Li-ion battery, over 30 hours of continuous operation, and an IP66-rated enclosure, SP-Pump Ex provides an efficient gas sampling solution for demanding industrial environments.

KEY FEATURES

- Remote Gas Sampling: Supports gas sampling from hard-to-reach areas using a sampling line up to 23 m long.
- Three Selectable Flow Levels: Offers three flow settings with a standard flow rate of 300 mL/min at Level 2 and a maximum adjustable flow rate of 500 mL/min.
- Automatic Blockage Detection: Detects blocked sampling lines and alerts users through a red LED and audible alarm.
- LED Status Indicators: Displays pump operation, low battery, and charging status through dedicated LED indicators.
- Rechargeable Li-ion Battery: Provides over 30 hours of continuous operation at 25°C and 300 mL/min.
- IP66 Protection: Features a dust-tight and water-resistant enclosure for industrial environments.
- Flow Calibration Function: Supports flow rate calibration to maintain consistent pump performance.
- Simple Two-Button Operation: Enables convenient power control and flow level selection.
- Compact and Lightweight Design: Weighs approximately 218 g for convenient handling and portability.
