Product

Fixed

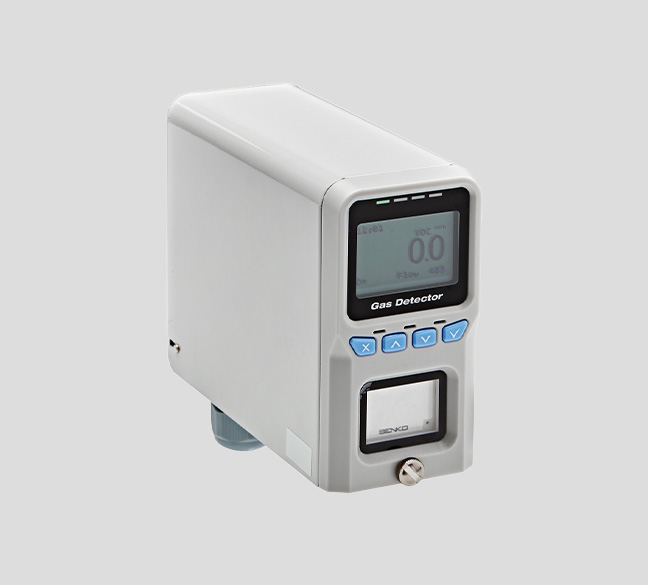

SI-H100

Sampling Type Fixed Gas Detector

SI-H100 is a sampling type gas detector that remotely draws and measures sample gas in real time through sensor cartridge inside the device. Helps prevent or manage various gas-related incidents such as asphyxiation, poisoning, fire and explosion, or corrosion in semiconductor and other industrial environments.

KEY FEATURES

No calibration required when replacing sensor
Large graphic LCD with intuitive icon-based interface (supports various expressions)
Analog output (4-20mA) based on gas concentration & fault alarm (0mA)
MODBUS and TCP Ethernet supported as default
PoE communication supported
RS-485 communication supported
Firmware can be updated via web
Pyrolyzer (thermal decomposition device) applicable (optional)

Product Inquiry

Features
Product Specifications
Download

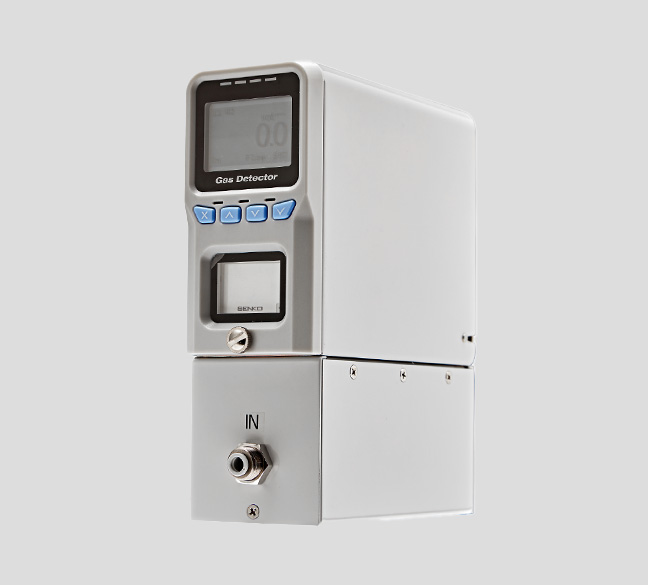

SI-H100 measures sample gas by sensor cartridge in the case upon suction remotely on a real time basis constantly. The monitor points up to 100 feet (30meters) away and shows alarm of dangerous concentration, fault situation, and so on, upon attaching on the wall. SI-H100 assists to prevent or control a variety of gas related accidents including toxic, flammable gases in a plant providing reliable sensor technology. Pyrolyzer option can be installed underneath the standard SI-H100. for detection and measurement through thermal decomposition in case of substances that do not have a gas sensor that can be generally detected, such as NF3.

Product Specifications

Model	SI-H100
Dimensions	123(H) x 65(W) x 155(D) mm
Weight	2kg
Operating Voltage	DC : 24V ±10% PoE : 36V~57V (Typical: 48V)
Flow Rate	500mL/min (MAX 900)
Power Consumption	Approximately 5.0W
Display	Graphic LCD (160x100), Gas concentration, unit, sensor status, Rear light, Device abnormality
Alarm	90dB at 10cm
Relay	1st stage, 2nd stage alarm, Device malfunction
Analog Output	Analog, 4–20mA
Digital Communication	RS-485, TCP Ethernet
Sampling Distance	Distance from device to sampling point: Max 30m (FEP tube) Distance from device to exhaust point: Max 30m (FEP tube)
Tubing Standard	1/4" Teflon tube
Operating Temperature	0°C ~ 40°C
Certification	CE
Input Settings	4 Button & RS485 & Ethernet
Device Warranty	2 years
Sensor Warranty	1 year
External Interface	Ethernet, RS-485
Wiring	4–20mA / DC Power / Relay : Cable 14 AWG
ETC	Firmware updates are available via our website (http://www.senko.co.kr)
