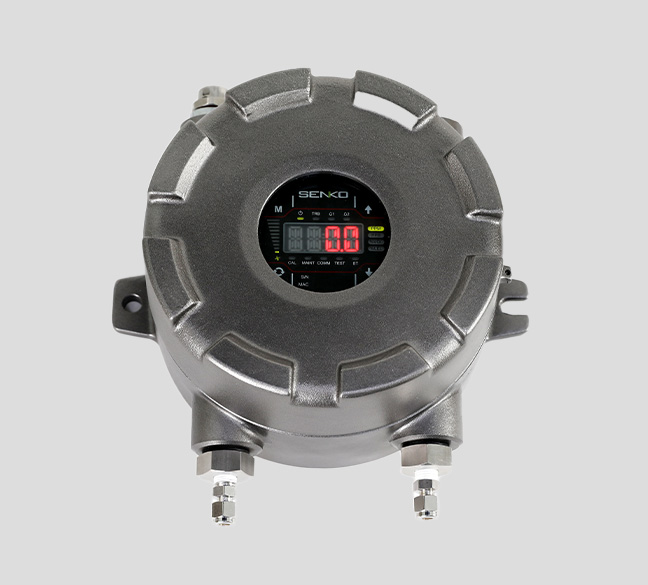

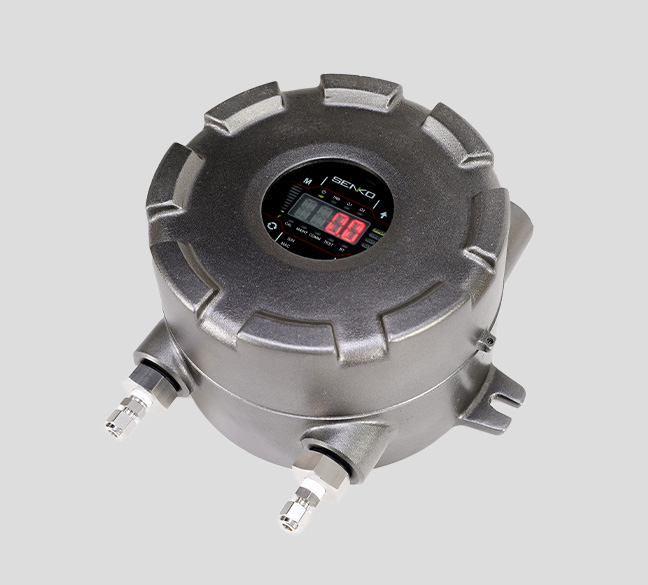

SI-310

Sampling Type Fixed Gas Detector

SI-310 is an explosion-proof sampling type gas detector with built-in pyrolyzer, designed to remotely draw and measure sample gas in real time through sensor cartridge inside the device. Used in hazardous areas of various industrial sites, it helps prevent or manage gas-related incidents such as asphyxiation, poisoning, fire and explosion, or corrosion.

KEY FEATURES
    • Explosion-proof structure
    • Cartridge-type sensor – easy maintenance
    • Built-in flow control function
    • 4-digit digital concentration display and digital flow display
    • 4-20mA / RS-485 / Ethernet
Product Inquiry

SI-310 is an explosion-proof sampling type gas detector with built-in pyrolyzer, designed to remotely draw and measure sample gas in real time through sensor cartridge inside the device. Used in hazardous areas of various industrial sites, it helps prevent or manage gas-related incidents such as asphyxiation, poisoning, fire and explosion, or corrosion.

Product Specifications
ModelSI-310
Size212(W) x 225(D) x 141.7(H) mm
WeightApprox. 6.5kg
Power SupplyDC : 24V ±10%
PoE : 36V~57V (Typical : 48V)
Flow Rate100~1000ml (Normal 300~500ml/min)
Power ConsumptionApprox. 15W @+24VDC
(Pyrolyzer Use 600mA @+24Vdc)
DisplayFND, Gas Concentration, Flow, Alarm, Device Fault
Relay1st Alarm, 2nd Alarm, Device Fault
OutputAnalog - 4~20mA
Digital CommunicationRS-485, TCP Ethernet (PoE)
Sampling DistanceInlet Gas Tube: Max 30m (FEP)
Exhaust Gas Tube: Max 30m (FEP)
Tube Spec1/4” Teflon Tube
Operating Temp-40℃ ~ +55℃
Input & Setting4 Button, RS485, Ethernet & Bluetooth
Warranty (Device)2 Years
Warranty (Sensor)1 Year
Remote InterfaceEthernet (PoE), RS-485, HART (optional)
Wiring4 to 20mA / DC Power / Relay: Max 14 AWG / Ethernet: RJ-45 Cat.5E
Pressure Range90 to 100kPa
Max Sample FlowMax 1,000ml
Max Sample Pressure6kPa
Explosion-proofKCs: Ex db IIC T6 Gb
