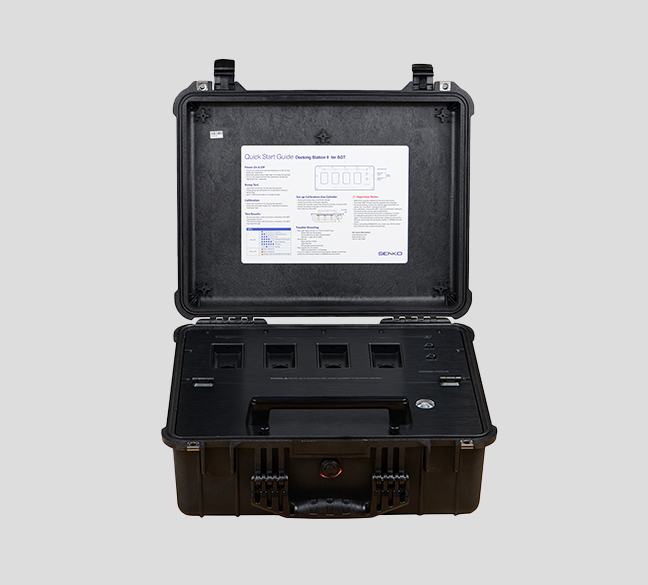

Docking Station maximizes the performance of SGT devices. It calibrates and performs bump tests on up to four SGT devices simultaneously, reducing maintenance time. Through bump testing, it checks gas sensor response and device alarms. It also automatically upgrades device firmware when connected. Event logs are stored on a USB drive for user analysis. Configuration is available via IR link connection.
Docking Station maximizes the performance of SGT devices. It calibrates and performs bump tests on up to four SGT devices simultaneously, reducing maintenance time. Through bump testing, it checks gas sensor response and device alarms. It also automatically upgrades device firmware when connected. Event logs are stored on a USB drive for user analysis. Configuration is available via IR link connection.
| Model | SGT Docking Station |
|---|---|
| Dimension | 47(W) x 41(H) x 22(D) cm (18.50 x 16.14 x 8.66 in) |
| Weight | 8.2kg (Without Gas Cylinder) |
| Operation Temperature | 41°F ~ 104°F (5°C ~ 40°C) |
| Warranty | Full 2 years |
| Battery Type | Rechargeable Lithium Ion |
| Battery Life | 1,000 Bump Tests |
| LEDs | 5 red/green/orange LEDs (1 for each unit, 1 for power) |
| Memory | USB 8GB Standard |
| Log Capacity |
Approximately up to 10 million tests (8GB, Removable USB memory) |
| Tests Performed | Bump Test and Calibration |
| Information Stored | Bump/Cal Logs, Individual monitor Event Logs, Firmware and Unit Configurations |
| Gases Available | CO, H₂S and O₂ |
| Unit Compatibility | Works with SGT |
| Calibration Gas | Compatible with 58L cylinders |
| Charging Adaptor | 12V, 3A |
| Certification | EMC, WEEE, RoHS2, REACH, RCM(ACMA&RSM), FCC |
