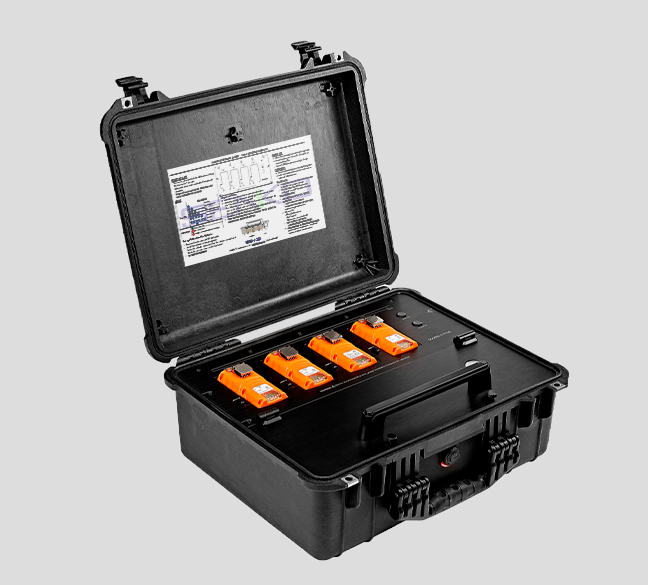

MGT Docking Station II

MGT Docking Station enables efficient management of multiple devices with auto calibration and bump test features. Its long battery life and event log storage help ensure worker safety.

KEY FEATURES
    • Zero and span calibration, bump test function
    • Indicate the current status of operation by the power LED and unit LED color
    • Gas ventilation system to remove a residual gas
    • Save the log events after calibration and bump test
    • Enable users to adjust the setting points of Docking Station and MGT via IR Link or USB
    • Rechargeable battery or power
    • Holds up to 4 devices at once
Product Inquiry

Using MGT Docking station lets safety managers maintain large number of devices easily. A Bump test and calibrating devices are the key features to ensure the safety of devices and users. MGT docking station version II fulfills auto calibrating/bump test function by pressing buttons simply. Long-lasting battery life and enough capacity for event logs are one of the noticeable features of Docking Station. With these features, it is possible Safety Managers can maintain all the important event logs that demonstrate users are working within company requirements.

Product Specifications
ModelMGT Docking Station (Version II)
Dimension525(W) × 437(H) × 213(D) mm (20.66 × 17.20 × 8.40 inch)
Weight11kg (Without Gas Cylinder)
Operating Temperature41°F ~ 104°F (5°C ~ 40°C)
WarrantyFull 2 years
Battery TypeRechargeable Lithium Ion
Battery Life1,000 Bump Tests
LEDs6 Blue LEDs per unit (x4), 3-color Power LED, Switch Backlight LED (Yellow, Green)
MemoryUSB 8GB Standard
Log CapacityApproximately up to 10 million tests (8GB removable USB memory)
Tests PerformedBump Test and Calibration
Information StoredBump/Cal Logs, Event Logs, Firmware and Unit Configurations
Gases AvailableLEL, CO, H2S, O2
Unit CompatibilityWorks with MGT (N, P)

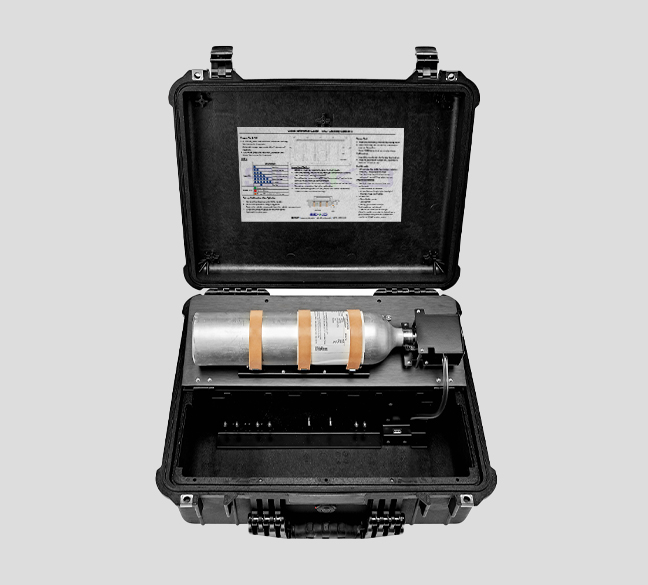

Calibration GasCompatible with 58L & 116L cylinders
Charging Adaptor12V, 3A
CertificationEMC, WEEE, RoHS2, REACH, RCM(ACMA & RSM)
