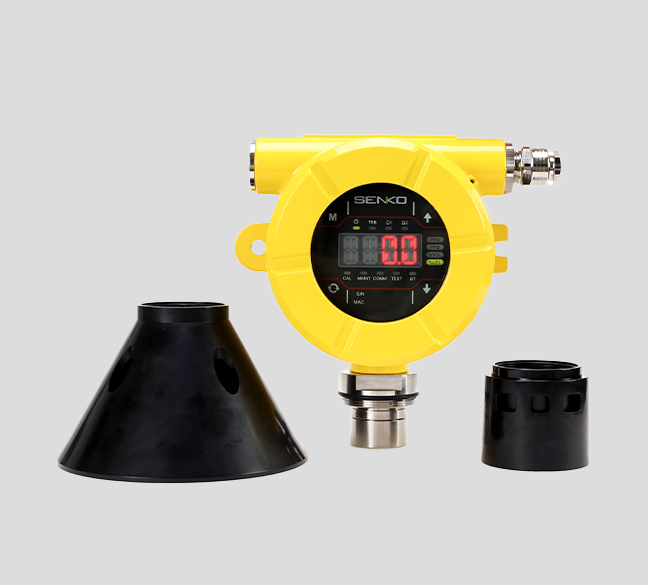

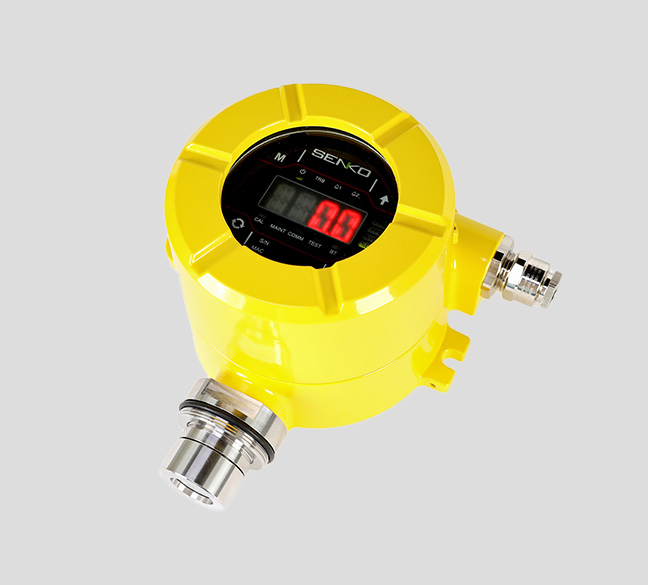

SI-200E

Diffusion Type Fixed Gas Detector

DESCRIPTION

SI-200E is a fixed gas detector designed for installation in areas with potential gas hazards. It measures oxygen, toxic gases, and combustible gases, and displays both gas concentrations and self-diagnostic results via its LED display. SI-200E can be connected to a controller using standard 4–20 mA analog output or RS-485 digital communication. Wireless connectivity allows for convenient configuration and input settings.

KEY FEATURES

- Explosion-proof certified: INMETRO, ATEX, IECEx, CSA/UL, CE, and PESO approved
- 4-digit digital concentration display
- Multiple communication interfaces: 4-20mA output & RS-485
- Wireless connectivity: Real-time mobile device monitoring
- Robust design: Reliable performance in harsh and hazardous environments
- Advanced detection technology: Provides superior performance

CERTIFICATION

INMETRO	Ex db IIC T6 Gb Ex tb IIIC T80 °C Db Tamb = -40 °C à +60 °C
ATEX	II 2 GD Ex db IIC T6 Gb and Ex tb IIIC T80 ℃ Db
IECEx	Ex db IIC T6 Gb Ex tb IIIC T80 °C Db
CSA/UL	Class I, Zone 1, AEx db IIC T6 Gb Class I, Div 1, Group A, B, C, and D (CANADA Only) Zone 21, AEx tb IIIC T80°C Db IP66 Class II, Div 1, Group E, F, G (CANADA only) Ex db IIC T6 Gb Ex tb IIIC T80°C Db IP66 -40 ºC to +60 ºC
PESO	Ex db IIC T6 Gb

Product Specifications

Model	SI-200E
Dimensions	169(W) x 188.5(D) x 107(H) mm
Weight	2.4kg
Operation Power	DC +24Vdc ±10%
Power Consumption	3.6W @ +24VDC
Operation Mode Display	FND, Concentration of Gas, Alarm, Malfunction
Relay	1st Alarm, 2nd Alarm, Fault Alarm (Rated 2.0A @30VDC)
Analog Output Signal	4-20mA
Digital Output Signal	RS-485
Measuring Method	Diffusion
Operating Temperature	-40℃ ~ +60℃
IP Rating	IP66
Input and Setting	4 Buttons & RS-485 & Wireless
Device Warranty	2 years
Sensor Warranty	1 year
Wireless Interface	RS-485 Modbus, HART (Option)

Sensor Specifications

Gas	Sensor	Range	A1	A2	Resolution
Oxygen (O₂)	Electrochemical	0~30%Vol	19.0%Vol	23.0%Vol	0.1%Vol
Carbon Monoxide (CO)	Electrochemical	0~500ppm / 0~2,000ppm (Option)	30ppm	60ppm	1ppm
Sulfur Dioxide (SO₂)	Electrochemical	0~20ppm	2ppm	5ppm	0.1ppm
Hydrogen (H₂)	Catalytic	0~100%LEL	15%LEL	50%LEL	1%LEL
Hydrogen (H₂)	Electrochemical	0~1000ppm	100ppm	500ppm	within 5ppm
Hydrogen Sulfide (H₂S)	Electrochemical	0~500ppm	10ppm	15ppm	1ppm
Combustible (-)	Catalytic	0~100%LEL	15%LEL	50%LEL	1%LEL
Combustible (-)	IR	0~100%LEL	15%LEL	50%LEL	1%LEL
Ammonia (NH₃)	Electrochemical	0~100ppm	25ppm	35ppm	1ppm
Acetylene (C₂H₂)	Catalytic	0~100%LEL	15%LEL	50%LEL	1%LEL
Ethanol (C₂H₆O)	Catalytic	0~100%LEL	15%LEL	50%LEL	0.1%LEL
Toluene (C₇H₈)	IR	0~100%LEL	15%LEL	50%LEL	1%LEL
Toluene (C₇H₈)	Catalytic	0~100%LEL	15%LEL	50%LEL	1%LEL
Methane (CH₄)	IR	0~100%LEL	15%LEL	50%LEL	0.1%LEL
Methane (CH₄)	Catalytic	0~100%LEL	15%LEL	50%LEL	0.1%LEL
Carbon Dioxide (CO₂)	IR	0~2000ppm	1000ppm	1500ppm	3ppm
Carbon Dioxide (CO₂)	IR	0~5000ppm	3000ppm	5000ppm	8ppm
Carbon Dioxide (CO₂)	IR	0~5%Vol	0.5%Vol	3%Vol	0.1%Vol
VOC (VOC)	PID	0~1000ppm	50ppm	100ppm	within 3ppm
Xylene (C₈H₁₀)	IR	0~100%LEL	15%LEL	50%LEL	1%LEL
Hydrogen Peroxide (H₂O₂)	Electrochemical	0~10ppm	1ppm	2ppm	0.1ppm
Nitrogen Dioxide (NO₂)	Electrochemical	0~20ppm	3ppm	5ppm	0.1ppm
Ethylene Oxide (C₂H₄O)	Electrochemical	0~30ppm	1ppm	2ppm	0.1ppm
Ethylene (C₂H₄)	Catalytic	0~100%LEL	15%LEL	50%LEL	1%LEL
Nitrogen Monoxide (NO)	Electrochemical	0~100ppm	25ppm	50ppm	1ppm
Butane (C₄H₁₀)	Catalytic	0~100%LEL	15%LEL	50%LEL	0.1%LEL
Propane (C₃H₈)	Catalytic	0~100%LEL	15%LEL	50%LEL	0.1%LEL
Hydrocarbon (HC)	Catalytic	0~100%LEL	15%LEL	50%LEL	0.1%LEL
