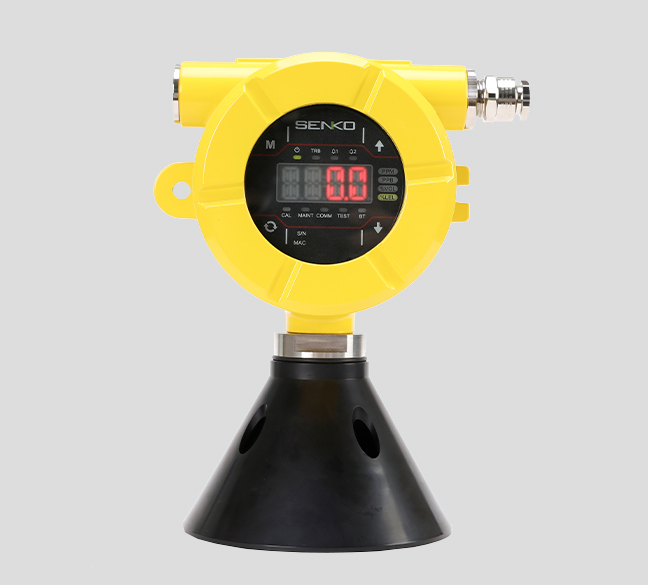

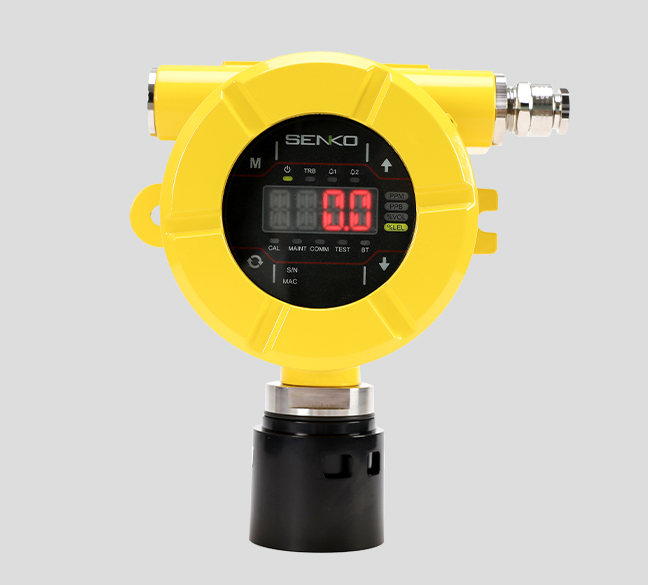

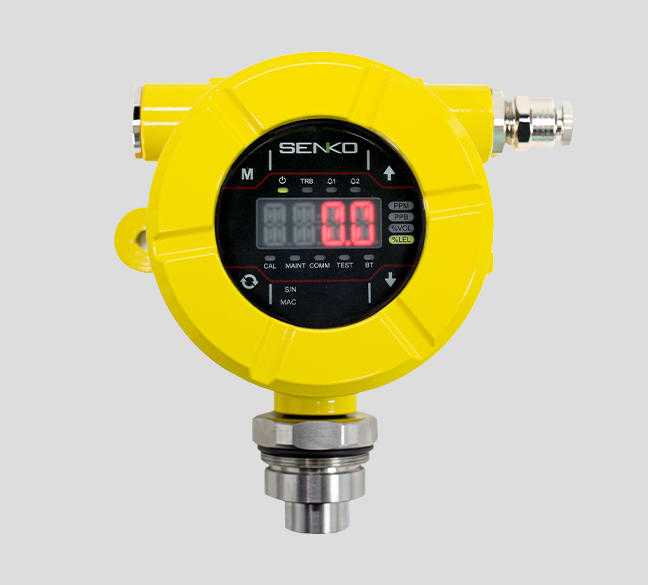

SI-200A

Ex ia Fixed Gas Detector

SI-200A is an intrinsically safe (Ex ia) fixed gas detector designed for fast and accurate detection of toxic gases such as HCl, NH₃, and Cl₂—gases that often suffer from delayed response due to adsorption in conventional flameproof (Ex d) detectors. With its optimized sensor housing and internal structure, the SI-200A minimizes adsorption effects, ensuring faster response time and higher measurement accuracy.

This diffusion-type explosion-proof detector is suitable for hazardous areas where toxic, oxygen, or combustible gases may be present. It features a large LCD for real-time gas concentration display and self-diagnostics. The device supports 4–20mA analog output (HART optional), RS-485 digital communication, and enables convenient configuration and calibration via wireless connection.

KEY FEATURES
    • Explosion-proof structure (Transmitter): Safe for use in hazardous environments
    • Intrinsically safe sensor housing: Minimizes electrical risks to ensure safety
    • Optimized for fast and accurate detection of adsorptive toxic gases: Ideal for detecting HCl, NH₃, Cl₂
    • 4-digit gas concentration display: Real-time measurement visibility
    • Self-diagnostic function via LCD: Automatically monitors device status
    • 4–20mA output (HART optional) / RS-485 communication: Compatible with various control systems
    • Wireless communication supported: Enables convenient configuration and data transfer
    • Suitable for hazardous area installation: Designed for industrial environments
Product Inquiry

SI-200A

Ex ia Fixed Gas Detector

DESCRIPTION

SI-200A is an intrinsically safe (Ex ia) fixed gas detector designed for fast and accurate detection of toxic gases such as HCl, NH₃, and Cl₂—gases that often suffer from delayed response due to adsorption in conventional flameproof (Ex d) detectors. With its optimized sensor housing and internal structure, the SI-200A minimizes adsorption effects, ensuring faster response time and higher measurement accuracy.

This diffusion-type explosion-proof detector is suitable for hazardous areas where toxic, oxygen, or combustible gases may be present. It features a large LCD for real-time gas concentration display and self-diagnostics. The device supports 4–20mA analog output (HART optional), RS-485 digital communication, and enables convenient configuration and calibration via wireless connection.


KEY FEATURES

- Explosion-proof Structure (Transmitter): Ensures safety in hazardous areas.
- Intrinsically Safe Sensor Housing: Certified Ex ia structure for high-risk environments.
- Optimized for Adsorptive Toxic Gases: Fast and accurate detection of HCl, NH₃, Cl₂, and similar gases.
- 4-digit Gas Concentration Display: Provides real-time readings on a large LCD screen.
- Self-diagnostic Function via LCD: Enables early detection of sensor or system faults.
- 4–20mA Output (HART Optional) / RS-485 Communication: Supports both analog and digital data transmission.
- Wireless Communication Supported: Allows remote configuration and calibration.
- Suitable for Hazardous Area Installation: Designed for industrial environments with explosion risks.


Product Specifications
Model SI-200A
Dimensions 169mm (W) × 188.5mm (D) × 107mm (H)
Weight 2.4kg
Operation Power DC: +24Vdc ±10%
Power Consumption 3.6W @ +24VDC
Operation Mode Display FND, Concentration of Gas, Alarm, Malfunction
Relay 1st Alarm, 2nd Alarm, Fault Alarm (Rated 2.0A @30Vdc)
Analog Output Signal 4–20mA
Digital Output Signal RS-485
Measuring Method Diffusion
Operating Temperature -40℃ to +60℃
IP IP66
Input and Setting 4 Buttons & RS-485 & Bluetooth
Device Warranty 2 years
Sensor Warranty 1 year
Wireless Interface RS-485 Modbus, HART (Option)
Certification KCs: Ex db ia IIC T4 Gb
IECEx: Ex ia IIC T4 Gb
Sensor Specifications
Gas Sensor Range A1 A2 Resolution
Oxygen (O₂)Electrochemical0~30%Vol19.0%Vol23.0%Vol0.1%Vol
Carbon Monoxide (CO)Electrochemical0~500ppm / 0~2,000ppm (Option)30ppm60ppm1ppm
Sulfur Dioxide (SO₂)Electrochemical0~20ppm2ppm5ppm0.1ppm
Hydrogen (H₂)Catalytic0~100%LEL15%LEL50%LEL1%LEL
Hydrogen (H₂)Electrochemical0~1000ppm100ppm500ppmwithin 5ppm
Hydrogen Sulfide (H₂S)Electrochemical0~500ppm10ppm15ppm1ppm
Combustible (-)Catalytic0~100%LEL15%LEL50%LEL1%LEL
Combustible (-)IR0~100%LEL15%LEL50%LEL1%LEL
Ammonia (NH₃)Electrochemical0~100ppm25ppm35ppm1ppm
Acetylene (C₂H₂)Catalytic0~100%LEL15%LEL50%LEL1%LEL
Ethanol (C₂H₆O)Catalytic0~100%LEL15%LEL50%LEL1%LEL
Toluene (C₇H₈)IR0~100%LEL15%LEL50%LEL1%LEL
Toluene (C₇H₈)Catalytic0~100%LEL15%LEL50%LEL1%LEL
Methane (CH₄)IR0~100%LEL15%LEL50%LEL1%LEL
Methane (CH₄)Catalytic0~100%LEL15%LEL50%LEL1%LEL
Carbon Dioxide (CO₂)IR0~2000ppm1000ppm1500ppm3ppm
Carbon Dioxide (CO₂)IR0~5000ppm3000ppm5000ppm8ppm
Carbon Dioxide (CO₂)IR0~5%Vol0.5%Vol3%Vol0.1%Vol
VOC (VOC)PID0~1000ppm50ppm100ppmwithin 3ppm
Xylene (C₈H₁₀)IR0~100%LEL15%LEL50%LEL1%LEL
Hydrogen Peroxide (H₂O₂)Electrochemical0~10ppm1ppm2ppm0.1ppm
Nitrogen Dioxide (NO₂)Electrochemical0~20ppm3ppm5ppm0.1ppm
Ethylene Oxide (C₂H₄O)Electrochemical0~30ppm1ppm2ppm0.1ppm
Ethylene (C₂H₄)Catalytic0~100%LEL15%LEL50%LEL1%LEL
Nitrogen Monoxide (NO)Electrochemical0~100ppm25ppm50ppm1ppm
