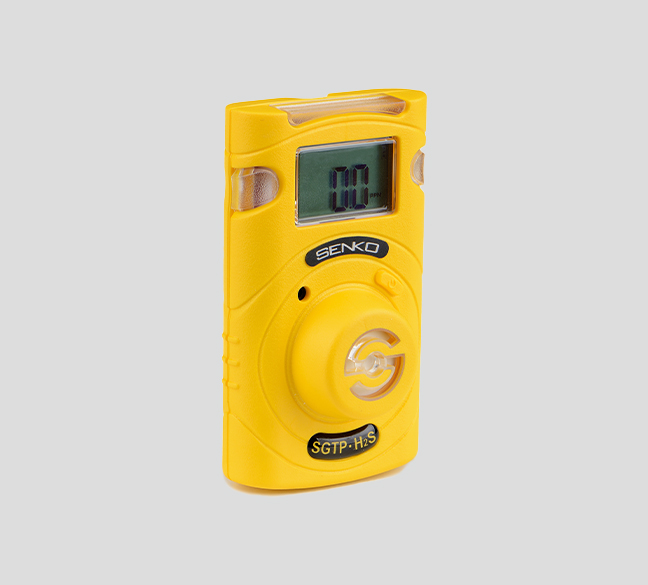

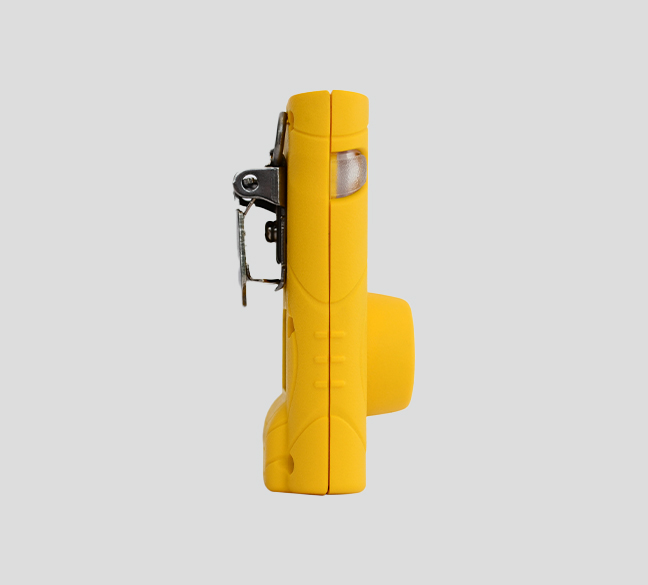

SP-SGT-P

Portable Single Gas Detector (Replaceable Type)

DESCRIPTION

SGT-P is a single replaceable gas detector designed to detect oxygen deficiency and the presence of toxic gas in the ambient environment. SGT-P is the replaceable type of gas sensor and battery. When activated, SGT-P continuously monitors ambient air for the presence of a specific gas and alerts the user to potentially unsafe exposure with LED, vibrating, and audible alarms in the event that gas concentration exceeds alarm set points.

KEY FEATURE

- Sensor and battery replacement available
- Power on / off functionality
- Excellent water / dust proof structure
- Automatic checking of the sensor trouble
- High-performance audible and vibrating alarms
- Automatic logging of up to 30 events
- Easy configuration and data management via IR link
- Easy calibration through the Docking Station

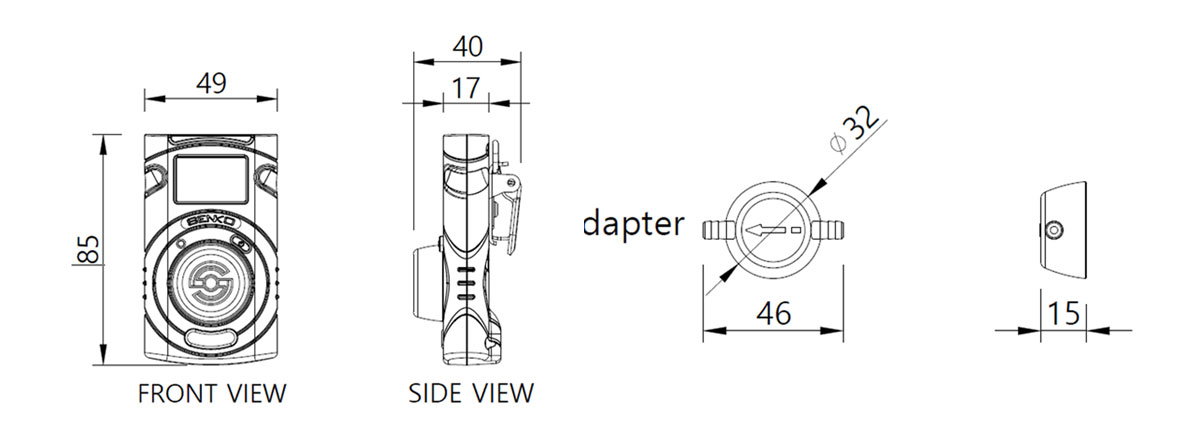

DIMENSION

Product Specifications

Model	SGT-P
Sensor Type	Electrochemical
Measuring Type	Diffusion Type
Case Material	Rubber Enclosure
Dimensions	54(W) x 91(H) x 32(D) mm 2.13(W) x 3.58(H) x 1.26(D) inch
Weight	93g / 3.28oz (Toxic), 104g / 3.67oz (O2) *Battery, Clip included
Operating Temperature	-40°C to +50°C / -40°F to +122°F (for CO, H2S, H2, NH3, NO2) -35°C to +50°C / -31°F to +122°F (for O2 and SO2)
Operating Humidity	5% to 95% RH (Non-condensing)
Operating Life	24 months, based on 2 minutes of alarm per day
Event Log	Recent 30 alarms
IP Rating	IP67
Alarm	Visual (Red flashing LEDs and LCD display), Vibration, Audible (90 dB at 10cm, buzzer)
Display	Liquid Crystal Display (LCD)
Battery	Manufacturer: Vitzrocell P/N: SB-AA02(P) Type: Lithium Primary Battery Nominal Voltage: 3.6V Nominal Capacity: 1.2Ah
Components	Calibration Cap, Manual, Calibration and Test Certificate
Certification	ATEX: II 1 G Ex ia IIC T4 Ga IECEx: Ex ia IIC T4 Ga CSA/UL: Class I, Zone 0, AEx ia IIC T4 Ga Class I, Division 1, Groups A, B, C, D, T4 INMETRO: Ex ia IIC T4 Ga PESO: Ex ia IIC T4 Ga etc.: RoHS2, RCM, REACH, WEEE, FCC

Sensor Specifications

Gas	Measuring Range	Low Alarm	High Alarm	Resolution
O₂	0~30%Vol	19%Vol	23%Vol	0.1%Vol
CO	0~500ppm	30ppm	60ppm	1ppm
H₂S	0~100ppm	10ppm	15ppm	0.1ppm
H₂	0~1,000ppm	100ppm	500ppm	1ppm
SO₂	0~50ppm	2ppm	5ppm	1ppm
NH₃	0~100ppm	25ppm	35ppm	1ppm
NO₂	0~20ppm	3ppm	5ppm	1ppm
Cl₂	0~20ppm	0.5ppm	1ppm	0.1ppm
HCN	0~50ppm	2ppm	5ppm	0.1ppm
PH₃	0~5ppm	0.5ppm	1ppm	0.1ppm
